Due to the product taking longer than usual to arrive.
Please inquire about the product every time before making payment. Thank you very much.

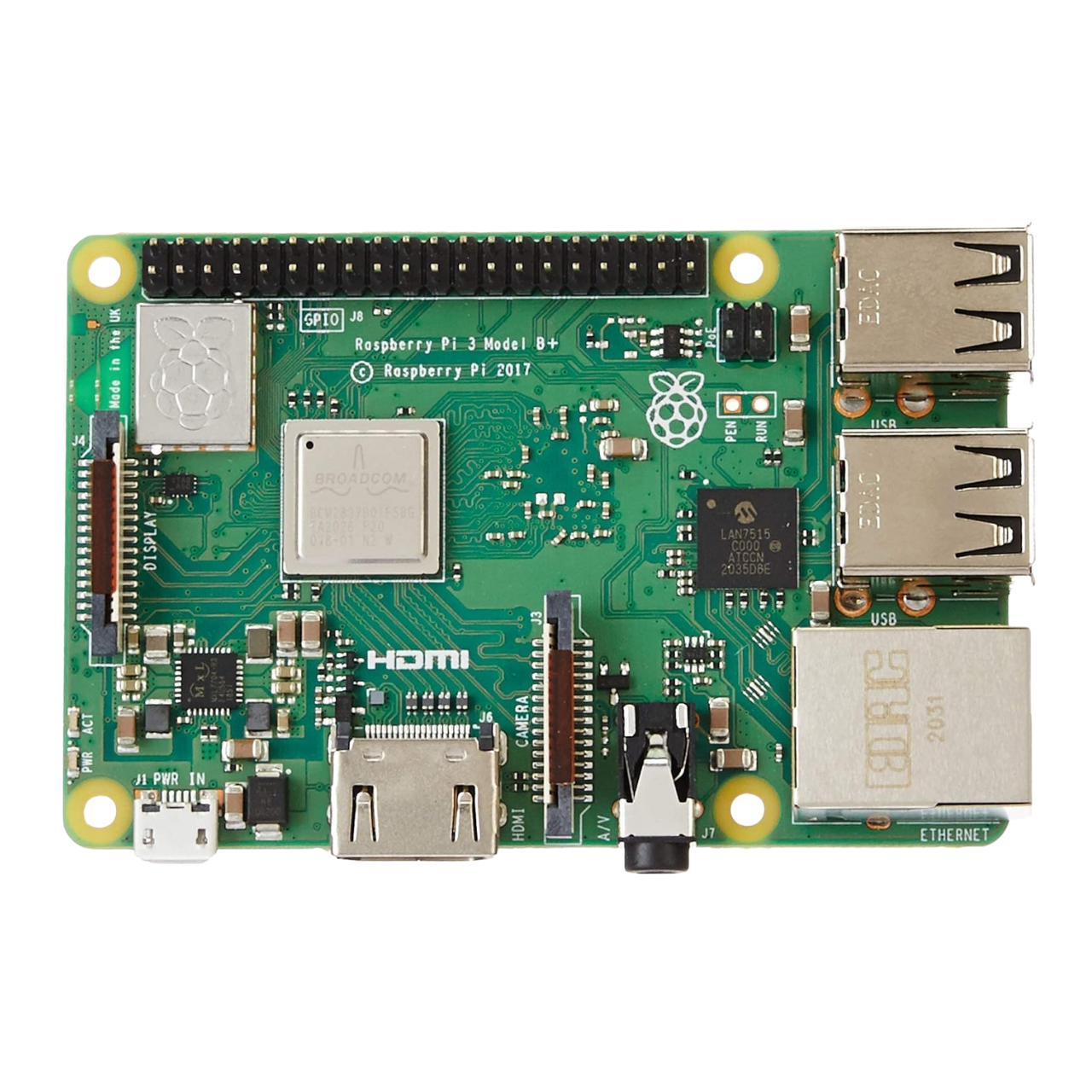

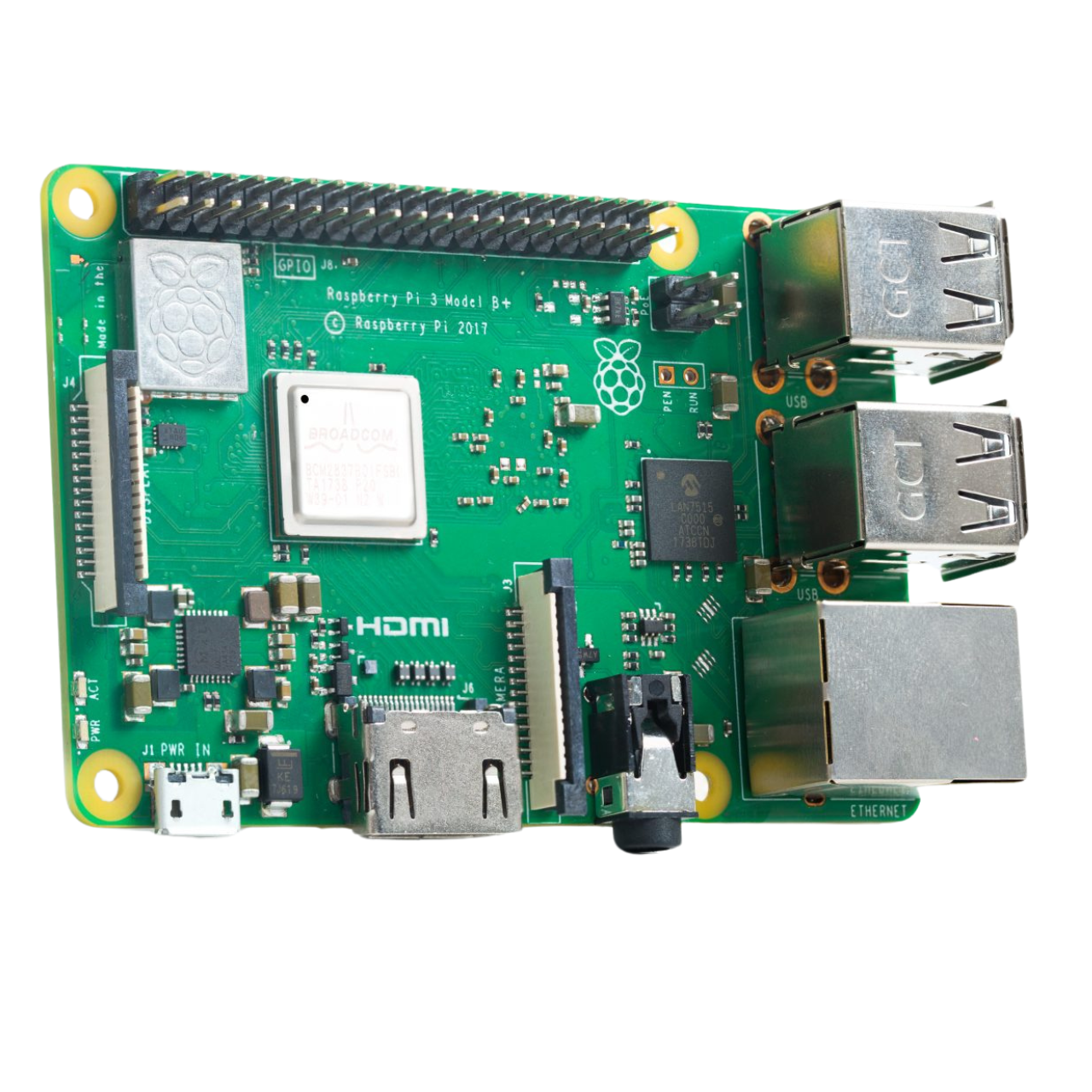

The Raspberry Pi 3 Model B+ is the latest addition to the Raspberry Pi 3 family, featuring a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz WiFi 2.4/5GHz, Bluetooth 4.2/BLE, and PoE capability (via a separate PoE HAT add-on).
details

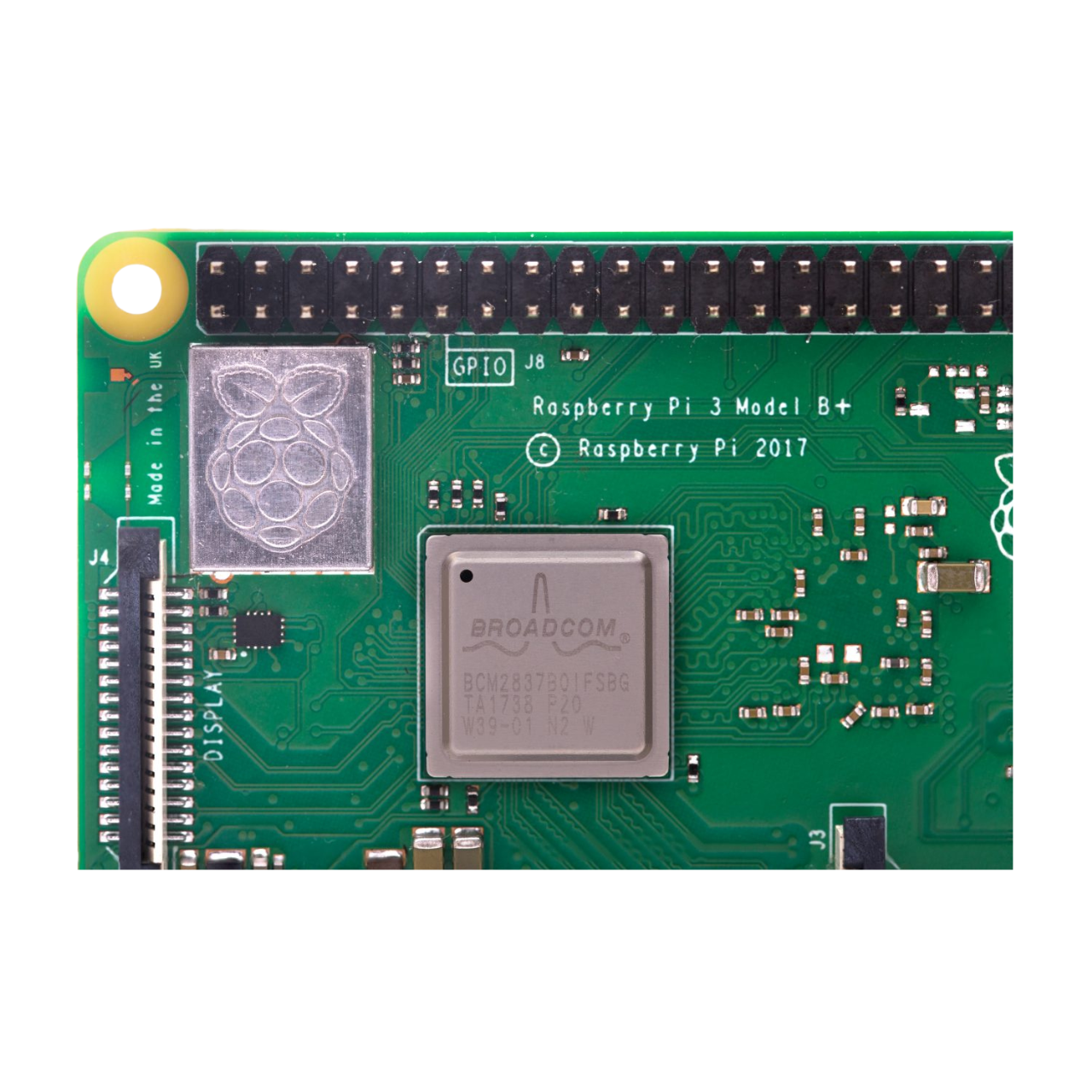

- Broadcom BCM2837B0, Cortex-A53, 64-bit, Quad-core SoC at 1.4GHz
- 1GB LPDDR2 SDRAM
- 2.4GHz / 5GHz IEEE 802.11 b / g / n / ac Wireless LAN (WLAN)
- Bluetooth Low Energy v4.2 (BLE)
- Gigabit Ethernet via USB 2.0 (Max speed 300Mbps)
- 4 x USB 2.0 ports
- GPIO 40 pin
- Full Size HDMI, MIPI DSI display port, MIPI CSI camera port
- 4-pole stereo audio/composite video output port
- MicroSD card slot for operating system and storage
- Enable Power over Ethernet (PoE) (requires separate PoE HAT)
- Power supply requirements - 5V/2.5A DC via micro USB or GPIO
- Raspbian operating system
The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE. capability via a separate PoE HAT. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.
- Broadcom BCM2837B0, Cortex-A53, 64-bit, quad-core SoC @ 1.4GHz
- 1GB LPDDR2 SDRAM
- 2.4GHz/5GHz IEEE 802.11 b/g/n/ac Wireless LAN (WLAN)
- Bluetooth Low Energy v4.2 (BLE)
- Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
- 4 x USB 2.0 Ports
- Extended 40-pin GPIO Header
- Full Size HDMI, MIPI DSI display port, MIPI CSI camera port
- 4-pole stereo audio/composite video output port
- MicroSD card slot for operating system and data storage
- Power over Ethernet (PoE) enabled (requires separate PoE HAT)
- Power supply requirements - 5V/2.5A DC via micro USB or GPIO
