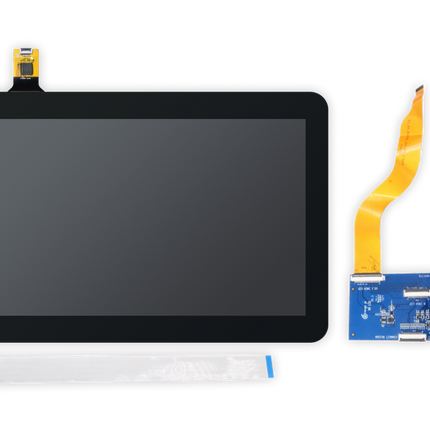

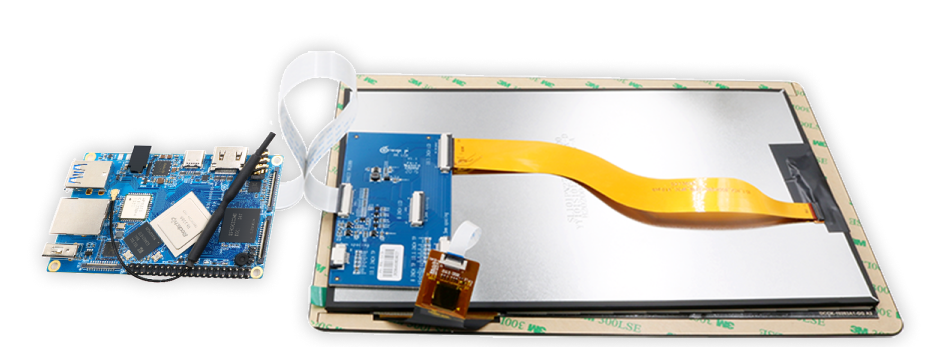

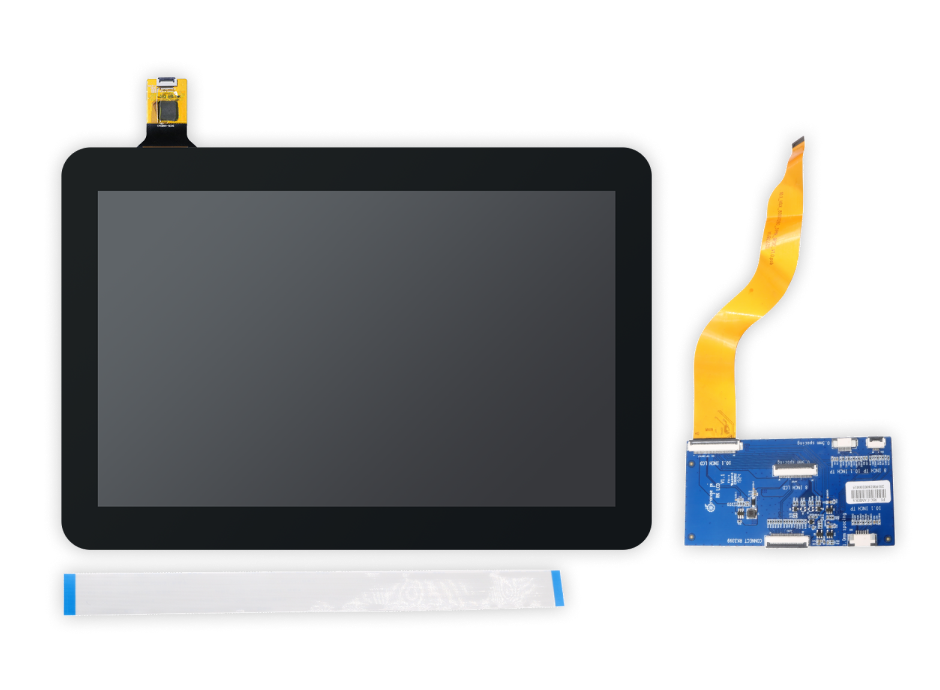

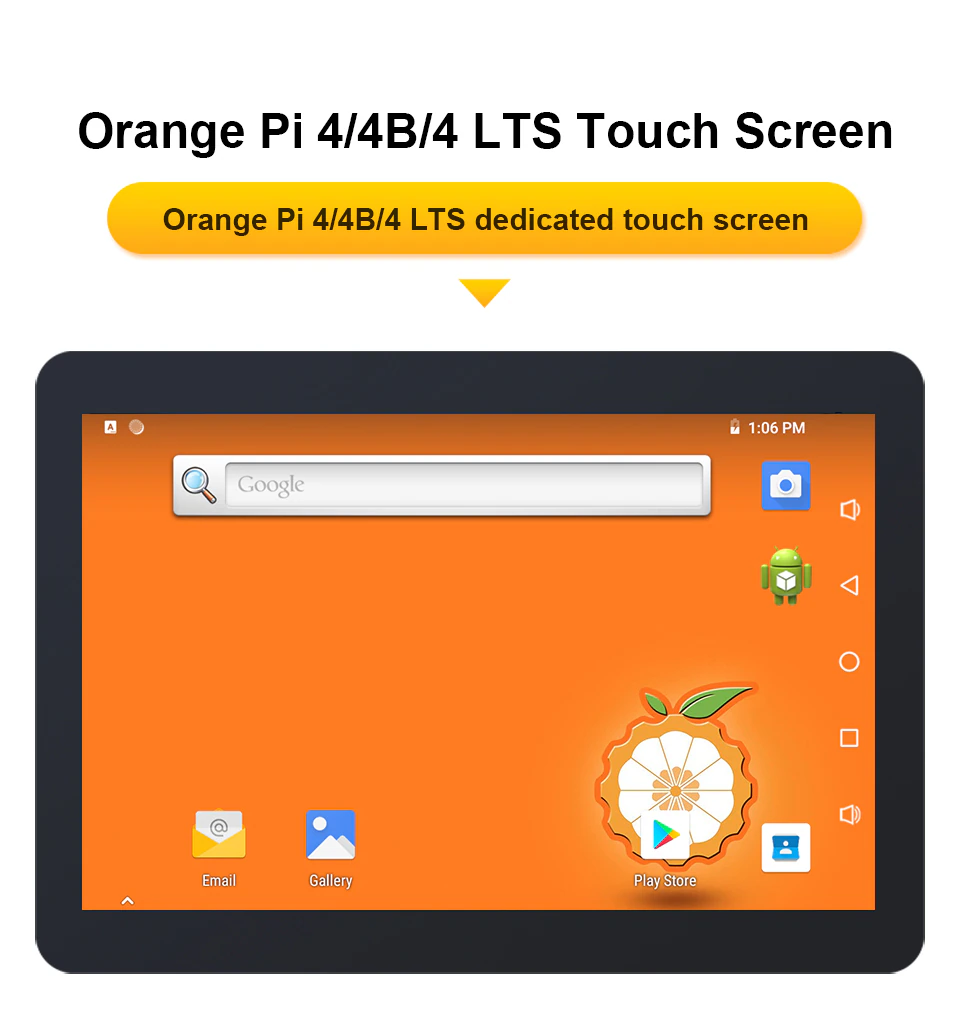

Orange Pi Touch Screen (For Orange Pi 4/4B/4 LTS/5)

ผู้ขายGlobal Pi Shop
แบ่งปัน

Orange Pi Touch Screen (For Orange Pi 4/4B/4 LTS/5)

ผู้ขายGlobal Pi Shop
แบ่งปัน

รูปแบบสินค้า

รหัสสินค้า: NF64914

3 ในสต็อก

3,000.00 ฿ 2,200.00 ฿ ไม่รวมภาษีมูลค่าเพิ่ม

ltem	Specification	Unit
Panel Size	10.1"	inch
Number of Pixels	800×RGB (3)×1280	pixels
Active Area	135.36(H)x216.576(V)	mm
Outline Dimension	143(W)×228.6(H)×2.7(D)	mm
Number of Colors	16.7M
Viewing Direction	ALL
Luminance (cd/m^2)	250(TYP.)	nit
Interface	MIPI
Backlight	27-LEDs (White)
Operation Temperature	0~50	°C
Storage Temperature	-10~60	°C
Weight	TBD	g
Source IC	ILI9881C
